Single arm 12x4

Single arm 12x4
To view high resolution photos, click on them.

ANGLE
±20°

SHAFT CONNECTION
DIN72783 C10xM8
DIN72783 C12xM8

NOZZLE
Optional

Single arm 12x4: The single wiper arm are used in order to obtain a circular, conventional wiping area.

On each wiper system there can be mounted 1 or more single arms.

   REQUEST A QUOTATION
   DOWNLOAD THE TECHNICAL SKETCH
TECHNICAL DATA
Lengths: 450 480 500 510 550 570 600 670
Angles bending: ±25°
Shaft connection: DIN72783 C12xM8 DIN72783 C16xM10
Blade connection: Saddle connection 16,5mm (DIN72786) Saddle connection 26,5mm (DIN72786)
Nozzle Optional

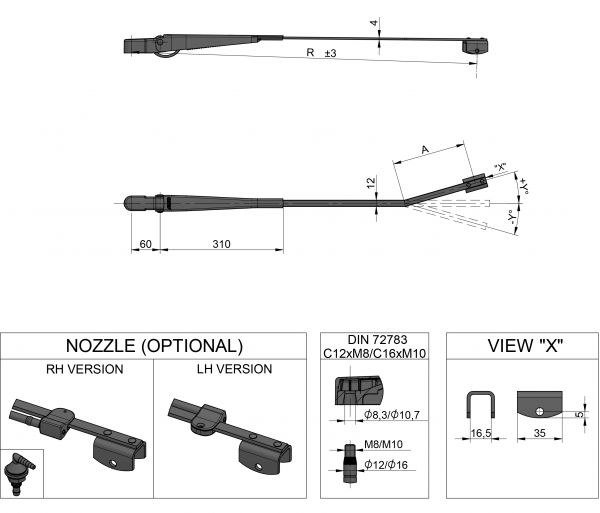

TECHNICAL DESIGN
Single arm 12x4
