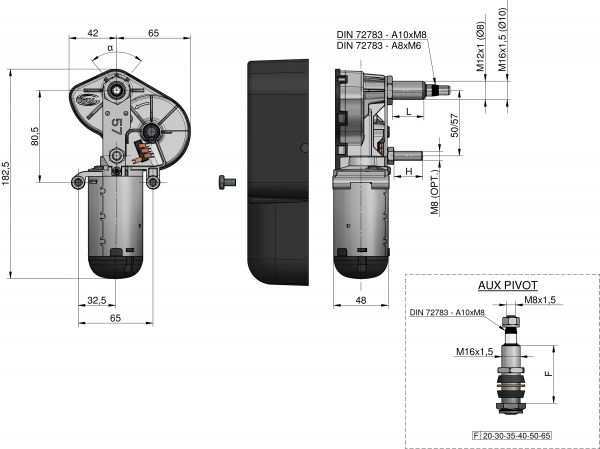

Gearmotor for windshield wipers MRT50: DC gear motor with permanent magnet, 12V or 24V, with internal mechanism for single o pantograph arms that can be directly mounted on the motor pivot. For the single arm the angle can reach 175 °.
The gear motor may be equipped with an EMC filter, compliant to the EMC regulations. If specifically requested by the customer, the product may be provided with the relevant certification.
The gearmotor may be equipped with the following accessories:
| Gearmotor for windshield wipers MRT50 | 1 Speed | |
| Nominal Voltage (V) | 12 | 24 |
| Testing Voltage (V) | 13,5 | 27 |
| Nominal current (A) | 1,5 | 1 |
| Max current (A) | 10 | 6 |
| No Load Speed (RPM) | 45 | 45 |
| Nominal current (RPM) | 45 | 45 |
| Nominal Torque (Nm) | 1 | 1 |
| Starting Torque (Nm) | 10 | 10 |
| IP Grade | 20 | |
| Weight (Kg) | 0,9 | |
| Wiped angle from... to... | 50° min. - 175° max. | |
| Max arm length + brush | 500 + 500 | |
| Maximum length of pantograph arm + brush | 500 + 500 | |
| Parking spot | RIGHT/LEFT | |
